Angled paint-tin shelf on slatwall, holding a pint paint tin

Building…

Angled paint-tin shelf for slatwall

Not test-printed yetBuilding…

Colours

Puts this design back in its own colours. Designs you haven't coloured show their own colours too, until you pick new ones.

Set your own measurements

Shelf

Shelf width

50.8 mm = 2 in, 101.6 mm = 4 in, the mount's widest

Shelf depth

From the wall to the front of the lip. 80 takes a 66 mm spray can; 100 a pint paint tin (about 86 mm)

Forward tilt

The front sits lower so labels face you and cans lean back against the lip; past 20° tall cans rest their weight on the lip

Lip height

How far the lip rises above the shelf at the front; higher holds tall cans better, lower is easier to lift over

Holds: Paint can
Kind: Small angled shelf
Prints as: One piece
Needs: Nothing to buy

Print settings, already in the 3MF

Worked out from your setup once the part has built.

Angled paint-tin shelf

Holds: Paint can

Prints as 1 piece

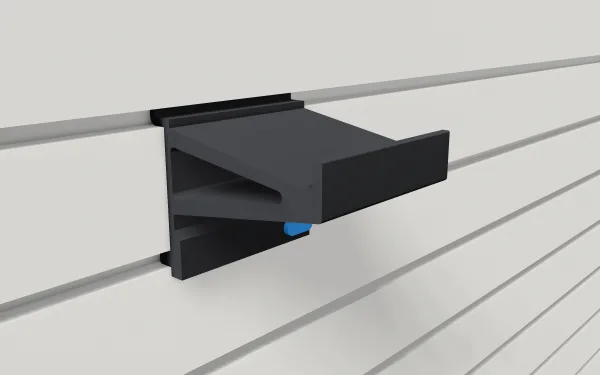

Holds spray cans or pint paint tins on a shelf tilted forward, labels facing you. A raised lip keeps them from sliding off; lift a can over it to take it out. Print in PETG or ASA, not PLA, and keep it to 1 kg (two full cans).

CC BY 4.0 · Free

Not test-printed yet. Made with AI and checked against the rules on every wall, but no test print has confirmed it yet.

Walls it fits

VEVOR PVC slatwallFits · some wall sizes assumed · not test-printed yet
StoreWallFits · some wall sizes assumed · not test-printed yet
HandiwallFits · some wall sizes assumed · not test-printed yet
Trusscore SlatWallFits · some wall sizes inferred · not test-printed yet
Retail MDF slatwall, 3 inFits · some wall sizes inferred · not test-printed yet
Flow WallFits · some wall sizes assumed · not test-printed yet
Gladiator GearWallWon't fit: its slot opening is 17 mm, and the cam-lock mount needs a slot opening from 8.5 to 11 mm
ProSlat PVC slatwallWon't fit: ProSlat doesn't publish its slot. Measure your wall and use Custom

History

First published 8 Oct 2026 0.2.1
