Calibration kit on a slatwall

Building…

Calibration kit for slatwall

Building…

Download

For Bambu Lab X1 / P1 / P2S / A1 · Bambu Studio · 4 colours · Standard fit ·

Print settings: supports automatic from the plate; key 75 % infill (change it in Your setup, under Fit).

File type

1 to 50 of the whole design, laid out on as many plates as your bed needs.

  • Filament 1 — Body, black
  • Filament 2 — Key + pins, azure

PrusaSlicer and other slicers get one 3MF per plate; Bambu Studio and OrcaSlicer get one 3MF with every plate.

    Tune your printer fit

    Tune your cam lock

    Print the cam-lock tuning plate: five lock tests, each with its bore gap and end gap printed on top. Print it in one colour and leave its supports as the file sets them.

    Get the plate, built for your wall.

    Which piece turned best?

    Choose the tightest one that broke free with a firm twist, turned smoothly and reached upright.

    Fit coupon

    The calibration kit's fit coupon has dovetails and print-in-place pins at Tight (T), Standard (S) and Loose (L).

    Which cell fitted best?

    Choose the tightest one whose tongue slides in by hand and whose pin turns freely.

    Calibration kit

    Prints as 4 pieces

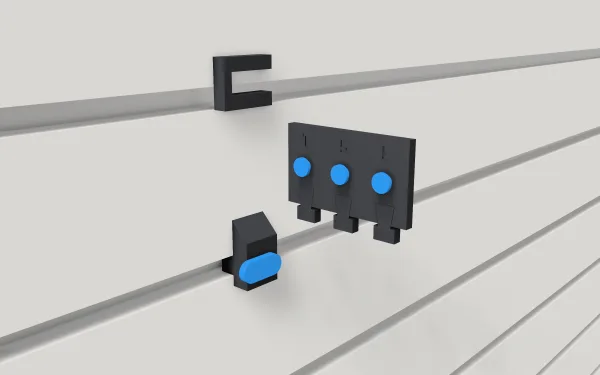

    Three small prints that tell you which printer fit to choose: a slot gauge for your wall, the print-tested cam lock on its own, and a fit coupon with dovetails and print-in-place pins at Tight, Standard and Loose.

    CC BY 4.0 · Free

    Walls it fits

    History

    1. 1.0.0
