Cam-lock tuning plate on a slatwall

Building…

Cam-lock tuning plate for slatwall

Building…

Download

For Bambu Lab X1 / P1 / P2S / A1 · Bambu Studio · 4 colours · Standard fit ·

Print settings: supports automatic from the plate; key 75 % infill (change it in Your setup, under Fit).

File type

1 to 50 of the whole design, laid out on as many plates as your bed needs.

  • Filament 1 — Body and keys, black

PrusaSlicer and other slicers get one 3MF per plate; Bambu Studio and OrcaSlicer get one 3MF with every plate.

    Tune your printer fit

    Tune your cam lock

    Print the cam-lock tuning plate: five lock tests, each with its bore gap and end gap printed on top. Print it in one colour and leave its supports as the file sets them.

    Which piece turned best?

    Choose the tightest one that broke free with a firm twist, turned smoothly and reached upright.

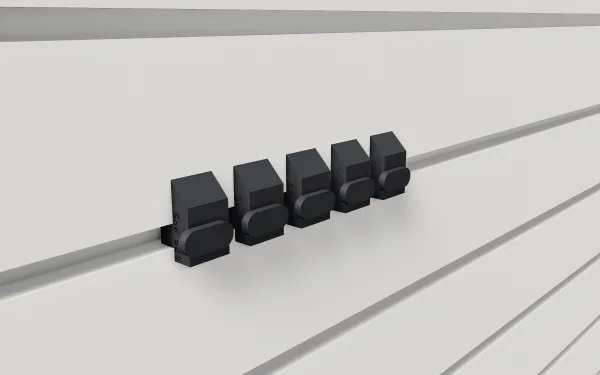

    Cam-lock tuning plate

    Prints as 5 pieces

    Five lock tests on one plate, Tight to beyond Loose, each with its gaps printed on top. Turn each key, then tell the calibration kit page which one turned best, and your printer fit takes its gaps.

    CC BY 4.0 · Free
