Glass-shelf rests on slatwall, a pair holding a glass shelf

Building…

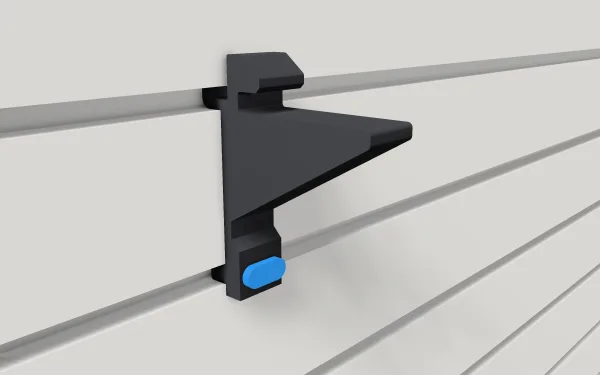

Glass-shelf rest for slatwall

Not test-printed yetBuilding…

Colours

Puts this design back in its own colours. Designs you haven't coloured show their own colours too, until you pick new ones.

Set your own measurements

Glass

Glass thickness

Measure your shelf: 3.2 = 1/8 in acrylic, 6 = 1/4 in, 8 mm, 10 = 3/8 in. The channel follows it, plus the pads and your printer fit

Seat reach

How far the seat runs under the glass from the wall

Rest width

25.4 mm = 1 in, 50.8 mm = 2 in. A wider rest spreads the glass's weight and holds more

Jaw overlap

How far the top jaw reaches over the glass's back edge, from the back of the channel; it stops the glass tipping up

Holds: Shelf board
Kind: Glass-shelf rest
Prints as: One piece
Needs: Nothing to buy

Print settings, already in the 3MF

Worked out from your setup once the part has built.

Glass-shelf rest

Holds: Shelf board

Prints as 1 piece

Holds a glass or acrylic shelf on two or more rests in one row of slots. Its back edge slides under a jaw, so it can't tip when you lean on it. Print in PETG or ASA, keep it to 1.5 kg per rest, glass included, and use steel brackets for a heavy shelf.

CC BY 4.0 · Free

Not test-printed yet. Made with AI and checked against the rules on every wall, but no test print has confirmed it yet.

Walls it fits

VEVOR PVC slatwallFits · some wall sizes assumed · not test-printed yet
StoreWallFits · some wall sizes assumed · not test-printed yet
HandiwallFits · some wall sizes assumed · not test-printed yet
Trusscore SlatWallFits · some wall sizes inferred · not test-printed yet
Retail MDF slatwall, 3 inFits · some wall sizes inferred · not test-printed yet
Flow WallFits · some wall sizes assumed · not test-printed yet
Gladiator GearWallWon't fit: its slot opening is 17 mm, and the cam-lock mount needs a slot opening from 8.5 to 11 mm
ProSlat PVC slatwallWon't fit: ProSlat doesn't publish its slot. Measure your wall and use Custom

History

First published 8 Oct 2026 0.1.0
