Shelf brackets on slatwall, a pair holding a shelf board

Building…

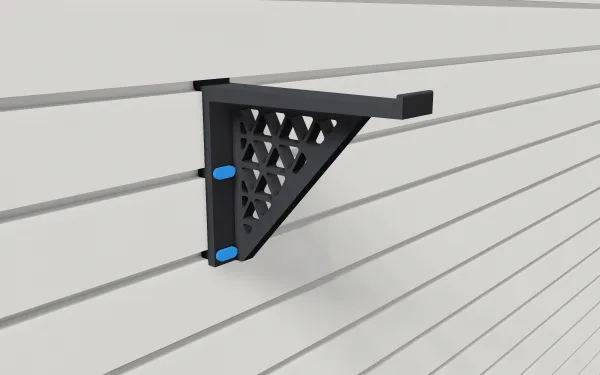

Shelf bracket for slatwall

Building…

Colours

Puts this design back in its own colours. Designs you haven't coloured show their own colours too, until you pick new ones.

Set your own measurements

Bracket

Shelf depth

Length of the arm, from the wall. Up to 240 mm so a bracket fits a 256 mm bed

Taller brackets lock lower on the wall and hold more

As you face the wall. Mirror one so two brackets under a shelf match each other. One of each makes a left and a right bracket, shown side by side and downloaded together

Infill

Pattern

Shelf

A lip stops the shelf sliding off; a jaw also stops it lifting

Screw holes

Up through the arm over the open lock column, so a screwdriver reaches them from below

Holds: Shelf board, Filament spool
Kind: Shelf bracket
Prints as: 2 pieces
Needs: Nothing to buy

Print settings, already in the 3MF

Worked out from your setup once the part has built.

Shelf bracket

Holds: Shelf board · Filament spool

Prints as 2 pieces

A shelf bracket that spans one to three slats with a cam lock in every slot it crosses. Choose the infill, how the shelf is held, and a left, right or mirrored pair.

CC BY 4.0 · Free

Walls it fits

VEVOR PVC slatwallFits · some wall sizes assumed
StoreWallFits
HandiwallFits · some wall sizes assumed
Trusscore SlatWallFits
Retail MDF slatwall, 3 inFits
Flow WallFits · some wall sizes assumed
Gladiator GearWallWon't fit: its slot opening is 17 mm, and the shelf bracket needs a slot opening from 8.5 to 11 mm
ProSlat PVC slatwallWon't fit: ProSlat doesn't publish its slot. Measure your wall and use Custom

History

First published 6 Oct 2026 1.0.1
