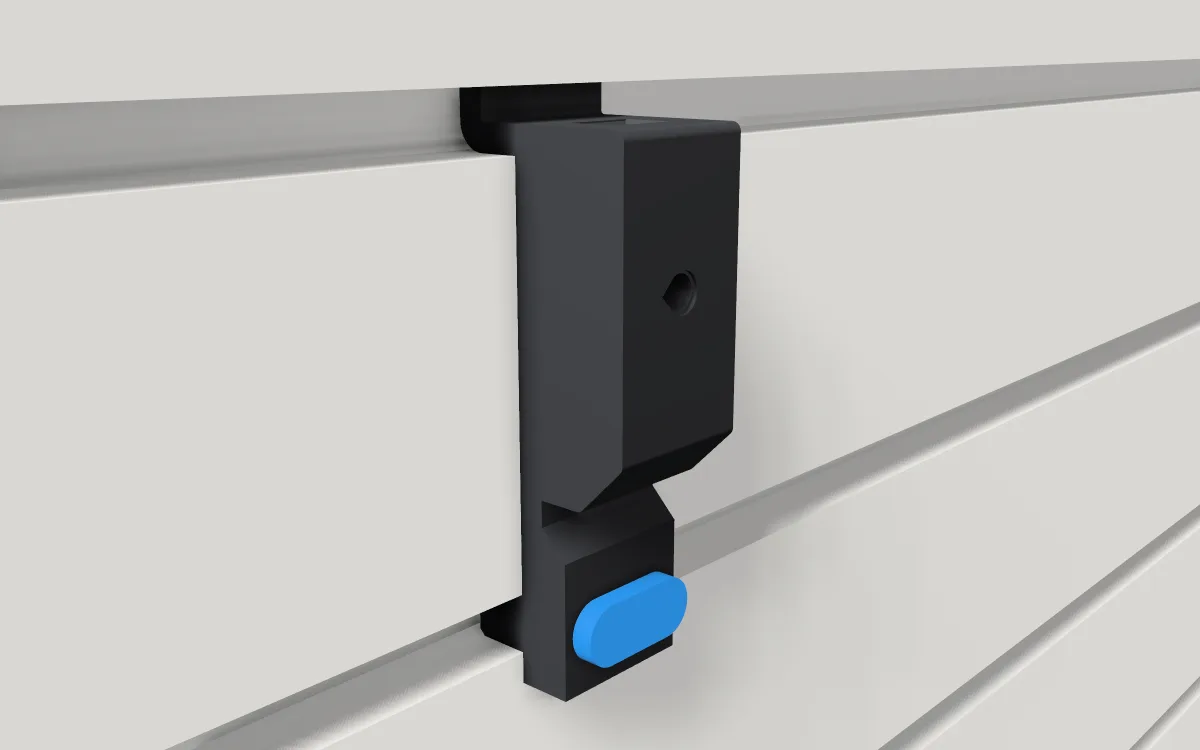

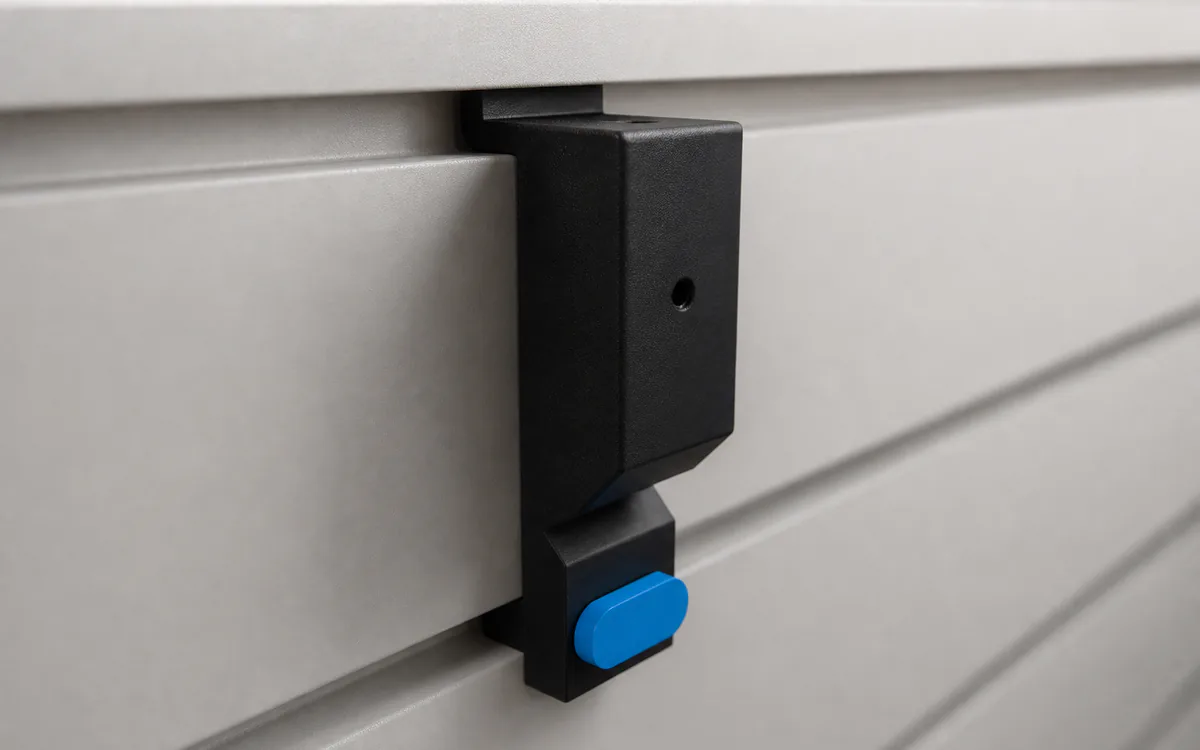

Slide-in T-nut on a slatwall
Turn it in 3D

1 / 4Photo

Mounts & adapters

Slide-in T-nut for slatwall

Holds a bought steel nut or heat-set insert on the wall to screw things onto.

Not test-printed yetBuilding…

Customize
Kind
Slide-in T-nut
Prints as
One piece
Needs
Metal nut or insert

Print settings, already in the 3MF

Worked out from your setup once the part has built.

Download

For Bambu Lab X1 / P1 / P2S / A1 · Bambu Studio · 4 colours · Standard fit ·

Print settings: supports automatic from the plate; key 75 % infill (change it in Your setup, under Fit).

File type

1 to 50 of the whole design, laid out on as many plates as your bed needs.

  • Filament 1 — Body, black
  • Filament 2 — Lock key, azure

PrusaSlicer and other slicers get one 3MF per plate; Bambu Studio and OrcaSlicer get one 3MF with every plate.

    Slide-in T-nut

    Prints as 1 piece

    Holds a bought steel nut or heat-set insert on the wall to screw things onto. Drop in the nut, hold your object to the face and screw in from the front. Print in PETG or ASA: it's rated 3 kg, or 1.5 kg with two screws or the face over 20 mm out.

    CC BY 4.0 · Free

    Not test-printed yet. Made with AI and checked against the rules on every wall, but no test print has confirmed it yet.

    Walls it fits

    • VEVOR PVC slatwallFits · some wall sizes assumed · not test-printed yet
    • StoreWallFits · some wall sizes assumed · not test-printed yet
    • HandiwallFits · some wall sizes assumed · not test-printed yet
    • Trusscore SlatWallFits · some wall sizes inferred · not test-printed yet
    • Retail MDF slatwall, 3 inFits · some wall sizes inferred · not test-printed yet
    • Flow WallFits · some wall sizes assumed · not test-printed yet
    • Gladiator GearWallWon't fit: its slot opening is 17 mm, and the cam-lock mount needs a slot opening from 8.5 to 11 mm
    • ProSlat PVC slatwallWon't fit: ProSlat doesn't publish its slot. Measure your wall and use Custom

    History

    1. 1.0.0
